Measure the most common water-quality parameters

Measures Hardware
EC Isolated - mod-EC - Lab EC Probe
pH Isolated - mod-pH - Lab pH Probe
ORP Isolated - mod-ORP - Lab ORP Probe
Temperature mod-NTC - 10K NTC

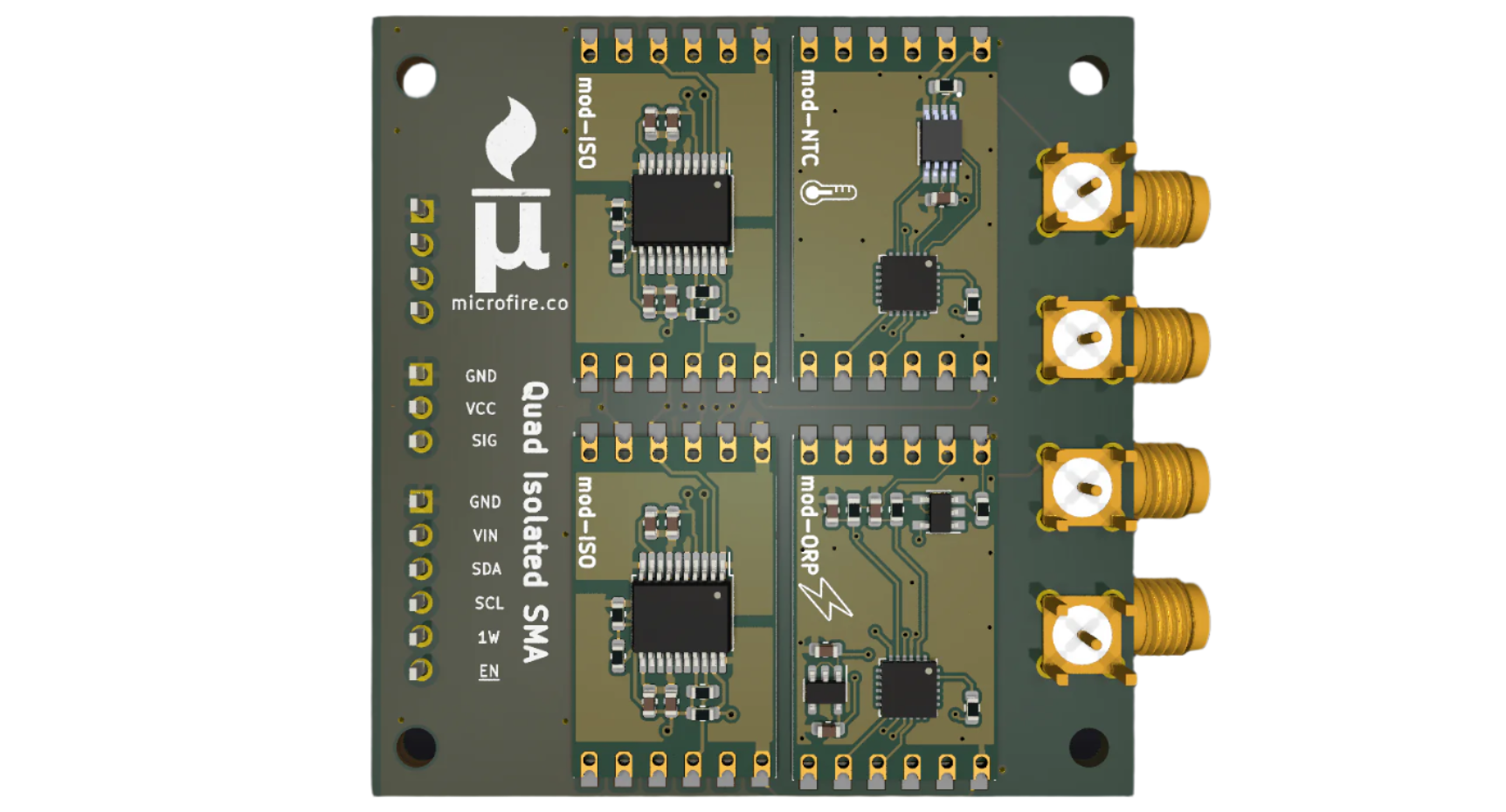

Board

  • isolated sensor modules permanently mounted
  • screw terminals for secure connections
  • mounting holes in all four corners for mounting in an enclosure
  • open-source for easy custom board development

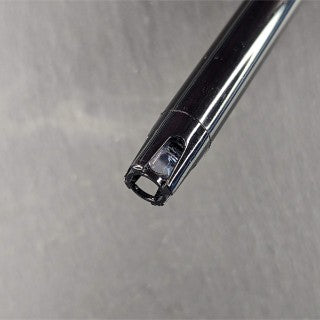

Probes

  • comes with lab probes for quicker and more accurate measurements
  • All probes have BNC connectors, the board has SMA-BNC adapter bulkheads which allow easy enclosure pass-through connections

Development

  • Developer page for Arduino, Raspberry Pi, and Home Assistant/ESPHome example code and wiring
