orp Tag

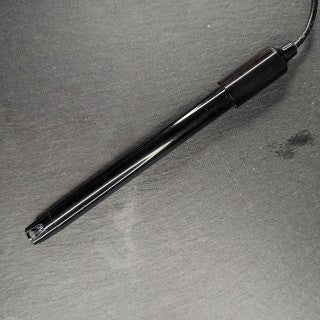

Lab ORP Probe
An ORP probe for use in a lab setting Connector Male BNC Cable Length 1 meters Measurement Range -2000mV - 2000mV Dimensions 12x155mm Materials Nylon Response time 90% by 7 second
$50.00

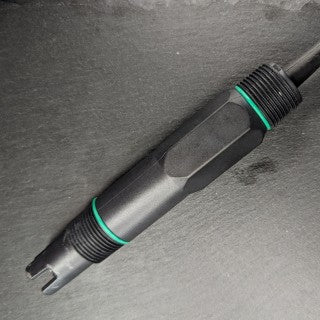

Industrial ORP Probe
A ruggedized ORP probe for continuous submersion Connector pin terminals Cable Length 3 meters Measurement Range -2000mV - 2000mV Dimensions 30x133 mm, 3/4" NPT threads Materials Nylon Response Time 90% by 7 seconds Connections yellow-capped wire is the sensing electrode black-capped wire is the reference electrode
$130.00

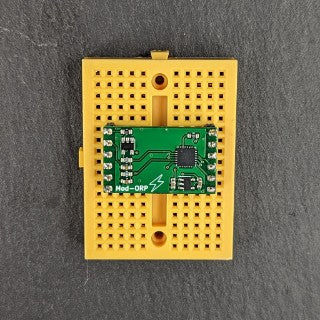

Mod-ORP
Add the ability to measure ORP to your hardware application with a fully digital I2C interface Specifications 💬 Interface I²C 🎯 Accuracy ±0.1 mV between -2230 to 2230 mV ↕️ Calibration single-point routine on-chip ⚡ Voltage 3.3v ⏱️ Time 750 ms/reading Development Developer page for Arduino, Raspberry Pi, and Home Assistant/ESPHome example code and wiring Options Pins pre-soldered pins for use in a breadboard Castellations for use in a custom-made board to permanently mount the module
from $35.00
Pool/Spa Kit
Everything needed to monitor a pool or spa Measures Hardware pH Isolated - mod-pH - Industrial pH Probe ORP Isolated - mod-ORP - Industrial ORP Probe Temperature Thermowell Temperature Sensor Board isolated sensor modules permanently mounted screw terminals for secure connections mounting holes in all four corners for mounting in an enclosure open-source for easy custom board development Probes comes with industrial probes suitable for constant submersion connections are terminal block plug&socket Development Developer page for Arduino, Raspberry Pi, and Home Assistant/ESPHome example code and wiring Downloads 3D Viewer and file exporter
from $130.00
