conductivity Tag

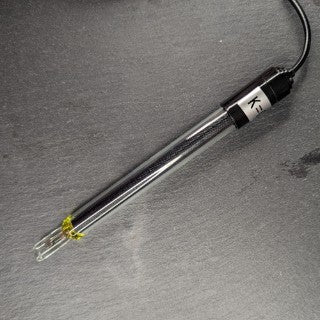

Lab Conductivity Probe K1
A conductivity probe for use in a lab setting Connector Male BNC Cable Length 1 meters Measurement Range 1 uS/cm — 10 mS/cm (when using Mod-EC) Dimensions 12x155mm Materials Glass body with black platinum electrodes Cell-constant K1±0.2
$50.00

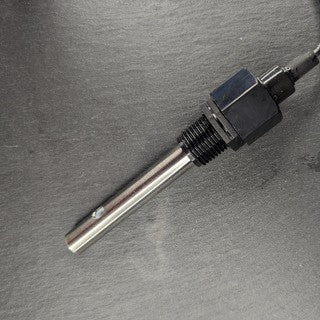

Industrial Conductivity Probe K1
A ruggedized conductivity probe with an embedded 10K NTC temperature sensor Connector pin terminals Cable Length 3 meters Measurement Range 100 uS/cm — 10 mS/cm (when using Mod-EC) Dimensions 30x133 mm, 3/4" NPT threads Materials Nylon threaded end, 316L stainless steel electrode Cell-constant K1 Connections Both EC and NTC use two wires, neither set is polarized White-capped wires are NTC Gray-capped wires are EC
$140.00
Mod-EC
Add the ability to measure EC to your custom hardware application with a fully digital I2C interface Specifications 💬 Interface I²C 🎯 Accuracy ±0.01 mS/cm in a range of 0.1 mS/cm to 1 mS/cm ±0.1 mS/cm in a range of 1 mS/cm to 10 mS/cm temperature compensated ↕️ Calibration single, double, triple point routines on-chip ⚡ Voltage 3.3v ⏱️ Time 750 ms/reading Development Developer page for Arduino, Raspberry Pi, and Home Assistant/ESPHome example code and wiring Options Pins pre-soldered pins for use in a breadboard Castellations for use in a custom-made board to permanently mount the module
from $35.00
